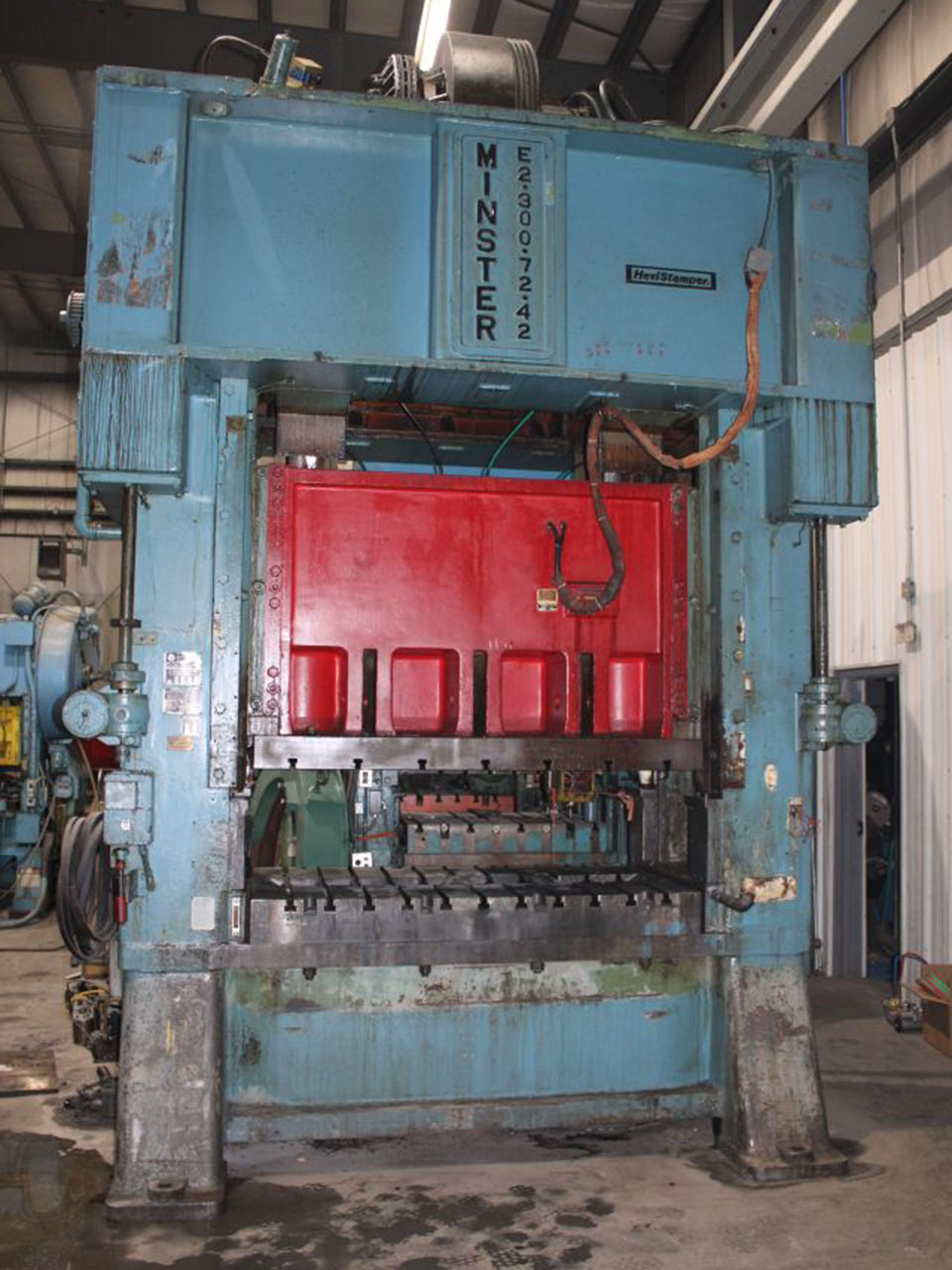

300 TON REMANUFACTURED MINSTER STRAIGHT SIDED PRESS – MODEL# E2-300-72
Specifications
This 300 Ton Minster is in very good condition and can be customized and freshly painted to fit the needs of your production line. From machine safeguarding to feeds and reels, we can help you get up and running with efficiency at a fair price. Fill out the form to get an estimate.
| Tonnage | 300 |
| Stroke | 8″ |
| Speed (Variable) | 60-120 SPM |
| Slide Adjustment | 6″ |
| Shut HT (S.D.A.U.) | 29″ |
| Bed Area | 72″ x 42″ |
| Slide Area | 72″ x 42″ |
| Side Window Opening | 22″ |
| Motor | 30 HP |
| Electrics | 230/460/3PH |
Includes
-
- Wintriss Die Pro
- Wintriss Pro Cam
- Wintriss Auto Set
- Dual Air Counterbalances
- Electric Ram Adjust with Shut Height Digital Indicator
- Automatic Recirculating Lubrication System
- 7” Bolster with T-slots
- Eight Point Gibbing
- Tie Rod Construction
- Eddy Current Motor
- Operator Console
- Front & Back Light Curtains
