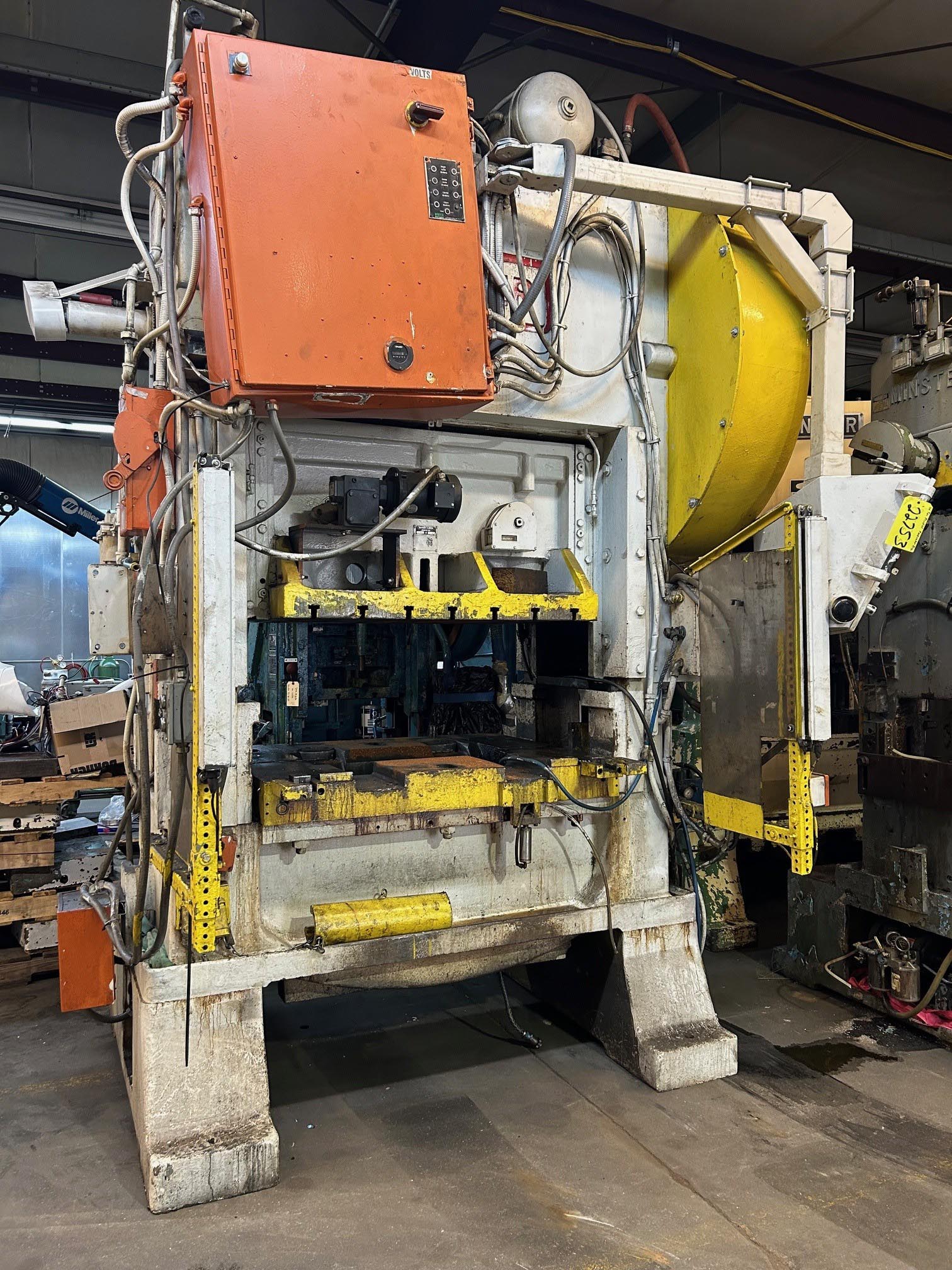

SPECIFICATIONS:
-
- Tonnage = 100
- Stroke = 4″
- Speed (Variable) = 100 – 200 SPM
- Slide Adjustment = 4″
- Shut HT (S.D.A.U.) = 20″
- Bed Area = 48″ L-R x 31″ F-B
- Slide Area = 48″ L-R x 18.5″ F-B
- Side Window Width = 16″
- Motor = 15 HP
- Electric = 230/480V/60HZ/3PH
- Weight (Approx.) = 26,000 lbs
- Dimensions = 103″ L x 80″ W x 151″ H
STAMPTECH’S REMANUFACTURING PROCESS INCLUDES:
-
- Complete Press Teardown
- Cleaning and Inspection of All Parts and Comparing Them to Original Specifications
- Remachining of Crown Bearing Bores, Connection Bores, Gibs Slide and Bolster as required to meet specifications
- Replacement of all Bronze Bushings, Bearings, Oil Seals, Packing and other wear items
- Installation of a New Lubrication System
- Installation of a New Pneumatic System
- Upgrading to the latest Safety requirements
- Retention of a Permanent Record for the life of the Remanufactured Equipment
- 1 Year Warranty
EQUIPPED WITH:
- Air Clutch and Brake
- Rebuilt Lubrication System
- Recirculating Lubrication System
- Dual Air Counterbalances
-
OSHA Compliant Wintriss Resolver Based Press Control with Smart Pac Pro
- Die Protection
- Programmable Limit Switch
- Tonnage Monitor
- Floor Mounted Operator Console
- Vari Speed Motor Drive
- Eight Point Bronze Gibbing
- Tie Rod Construction
- Shut Height Indicator
- T-Slotted Ram
- 5″ T-Slotted Bolster Plate (with Center Cutout)
- (4) Isolation Mounts
May be seen under power on our floor
